How to Master 3D CAD for 3D Printing Fast in 2026?

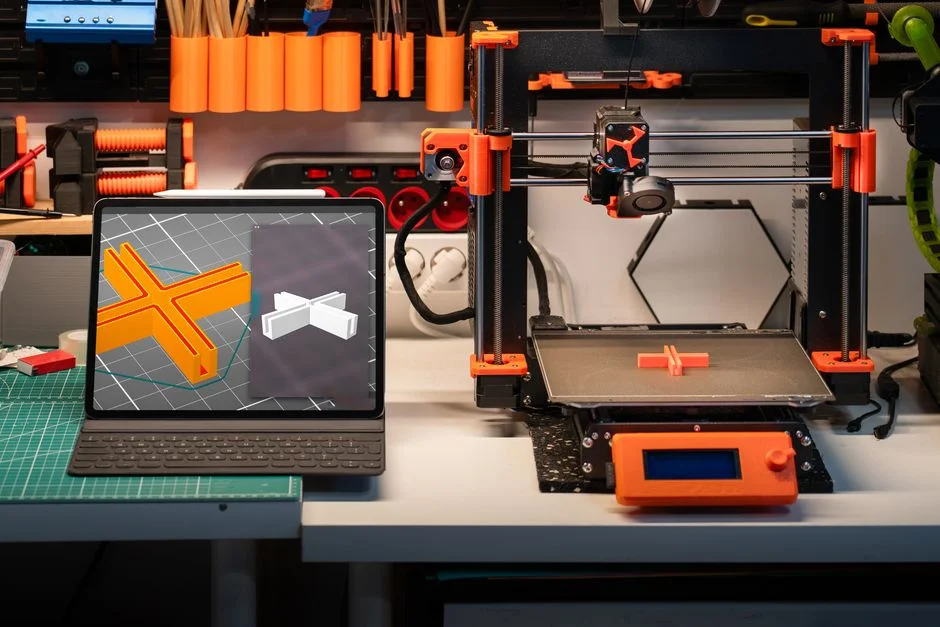

Why 3d cad for 3d printing is a different kind of design work

3d cad for 3d printing sits at the intersection of digital modeling and real-world manufacturing, which makes it fundamentally different from creating visuals for animation, games, or concept renders. When a model is meant to be printed, every surface becomes a physical boundary, every hollow cavity becomes a potential trap for uncured resin or support material, and every thin feature becomes a structural risk. The software tools might look similar to general 3D modeling, but the intent is more demanding: the geometry must be watertight, the scale must be accurate, and the design must respect the capabilities and limitations of the chosen printer and material. A model that looks perfect on screen can fail instantly in a slicer if it contains non-manifold edges, inverted normals, self-intersections, or microscopic gaps. The best workflow begins with the end in mind: how the object will be oriented on the build plate, where supports will touch, where tolerances are needed, and how the printed piece will be cleaned, cured, sanded, or assembled. Treating CAD as a manufacturing tool rather than a drawing tool changes the decisions you make at every step.

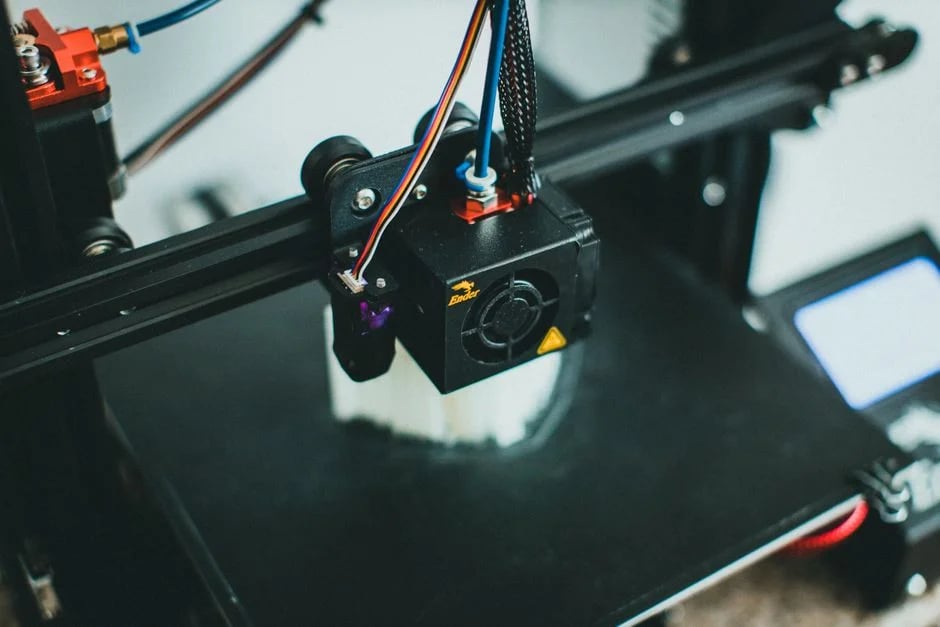

Another reason this discipline feels unique is that 3D printing is not a single process. FDM, SLA, DLP, SLS, MJF, and metal additive all impose different rules on minimum wall thickness, feature detail, surface finish, overhang behavior, and dimensional accuracy. With FDM, long thin walls can warp, and bridging and overhang angles govern what prints cleanly without heavy supports. With resin printing, tiny details can be stunning, but suction forces and peel stresses can rip delicate parts from supports, and hollowing introduces drainage and venting requirements. Powder-bed processes tolerate complex internal structures but demand attention to powder escape holes and part nesting. Because the same CAD model may be printed on multiple technologies, good design practice includes building in flexibility: adding fillets to reduce stress risers, choosing robust thicknesses, and planning for post-processing. When you approach 3d cad for 3d printing as engineering geometry rather than “just a model,” you increase print success, reduce wasted material, and get parts that work the first time.

Choosing the right CAD approach: parametric, direct, and sculpting workflows

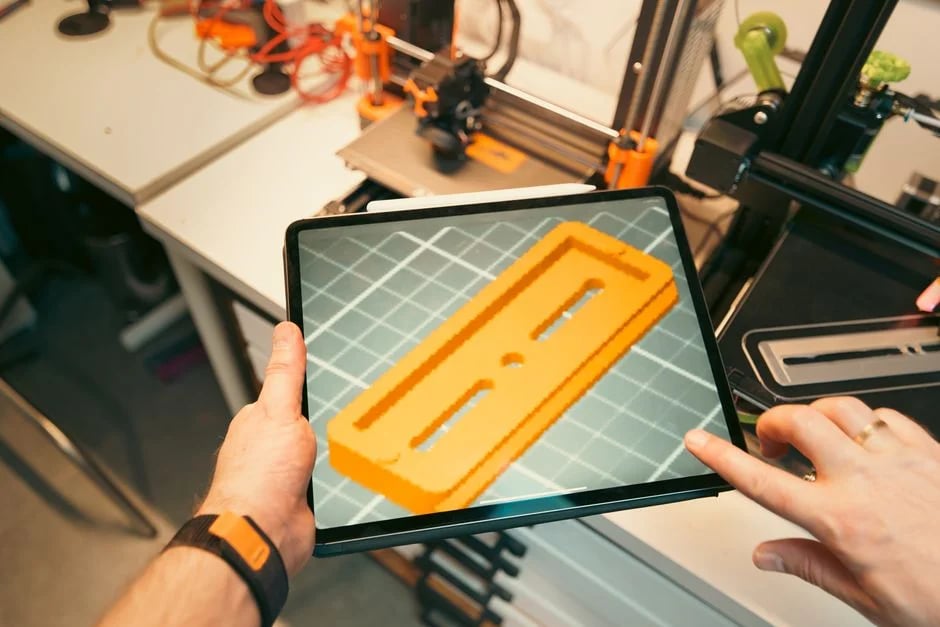

Successful 3d cad for 3d printing starts with selecting a modeling approach that matches the object’s purpose. Parametric CAD (often called feature-based modeling) is ideal for functional parts: brackets, enclosures, jigs, fixtures, gears, and assemblies that must fit together with predictable dimensions. Parametric tools let you define sketches with constraints, then generate features like extrudes, revolves, lofts, shells, fillets, chamfers, and patterns. The advantage is editability: if you need to change a hole diameter, wall thickness, or spacing, the model updates predictably. This is especially valuable for iterative printing, where you might test-fit a part, adjust a dimension by 0.2 mm, and reprint. Parametric modeling also supports design intent, meaning the CAD file reflects why something is shaped a certain way, not just what it looks like. If you’re producing a family of parts in multiple sizes, parametric tables and variables can generate variants quickly, which is a major productivity win when using 3d cad for 3d printing in a prototyping or small-batch context.

Direct modeling and sculpting workflows shine when the goal is organic shape, ergonomic surfaces, figurines, or artistic objects. Direct modeling lets you push and pull faces without a strict feature history, which can be faster for quick edits and reverse-engineering tasks. Sculpting tools use digital clay methods, with brushes that smooth, inflate, pinch, or crease geometry. Those meshes can be incredible for characters, miniatures, and decorative pieces, but they can also be troublesome if the mesh becomes overly dense, self-intersecting, or full of non-manifold artifacts. For printing, sculpted meshes often need cleanup: remeshing, reducing triangles, ensuring uniform thickness, and repairing holes. Many creators combine approaches: use parametric CAD for mechanical interfaces (mounts, threads, snap-fits) and sculpting for the external form, then merge them into one printable solid. Understanding which approach best fits the project prevents frustration and reduces the time spent repairing files downstream in the 3d cad for 3d printing pipeline.

Designing watertight solids: manifold geometry, normals, and common mesh failures

One of the most important technical requirements in 3d cad for 3d printing is creating watertight, manifold geometry. “Watertight” means the model encloses a volume with no gaps; “manifold” means every edge belongs to exactly two faces, so the slicer can clearly distinguish inside from outside. Problems often appear when models are built from intersecting parts without proper boolean unions, when surfaces are left open, or when imported meshes have broken topology. Non-manifold edges confuse slicers, leading to missing layers, random holes, paper-thin walls, or unexpected internal voids. Inverted normals can also cause slicers to treat external surfaces as internal, generating strange toolpaths. Even tiny cracks smaller than a pixel on screen can become major errors because slicing is essentially a computational geometry problem: it needs consistent boundaries to compute cross-sections. Good CAD practice includes using solid modeling when possible, running validation tools, and exporting with appropriate tolerances so curves don’t become jagged but also don’t create enormous files.

Mesh failures have patterns. Self-intersections happen when a surface passes through itself, common in sculpting or when scaling and deforming geometry. Zero-thickness geometry appears when two faces touch without volume, like a plane used as a “fin” that has no thickness. Internal faces show up after booleans when the union isn’t clean, leaving hidden walls inside the part that create confusing slice results. Another frequent issue is disconnected shells: separate bodies that overlap visually but aren’t fused, which can lead to weak prints or separate toolpaths that don’t bond. A dependable workflow for 3d cad for 3d printing includes: keep parts as solids, perform boolean unions instead of overlaps, avoid paper-thin surfaces, run analysis checks, and if working with meshes, use repair steps such as “make manifold,” “close holes,” and “remove self-intersections.” The goal is to hand the slicer a clean, unambiguous boundary so the printing process becomes predictable rather than experimental.

Dimensional accuracy and tolerances: making parts that actually fit

Dimensional accuracy is where 3d cad for 3d printing becomes practical engineering rather than digital artistry. Printers have mechanical limits, materials shrink, and slicers approximate curves with toolpaths, so the printed part rarely matches the CAD model perfectly without compensation. Tolerances are the deliberate gaps or offsets that allow mating parts to assemble. For example, a peg designed at exactly 10.00 mm to fit a 10.00 mm hole will often bind, because the printer may slightly over-extrude, the hole may print undersized, and the peg may print slightly oversized. A more reliable approach is to design clearance into the CAD model: perhaps a 10.00 mm peg into a 10.30 mm hole for FDM, or a smaller gap for resin printing depending on calibration. The correct values depend on your printer tuning, nozzle size, layer height, material, and orientation. Functional fits—press-fit, slip-fit, and clearance-fit—each require different allowances. A slip-fit should move freely; a press-fit should hold with friction; a clearance-fit should assemble easily even with minor warping.

Another dimension to accuracy is how features are oriented. Holes printed vertically tend to be more accurate than holes printed horizontally, where the top of the hole becomes a bridge and can sag. Circles often print slightly oval due to belt tension, acceleration settings, or resin peel forces. Threads are also sensitive: fine threads may not resolve well with a 0.4 mm nozzle, and resin threads may be brittle if designed too sharp. In 3d cad for 3d printing, it’s often better to design self-aligning features such as chamfers or lead-ins that guide parts into place. Adding a small chamfer at the entrance of a hole can make assembly dramatically easier without changing the functional dimension. If you need repeatable fit, print a small tolerance test coupon: a set of holes and pegs at incremental clearances. Then bake those results into your CAD standards so your workflow becomes consistent across projects. Over time, your 3D CAD choices will reflect the real behavior of your printers rather than idealized geometry.

Wall thickness, shells, and internal structures that print reliably

Wall thickness is a make-or-break parameter in 3d cad for 3d printing because it affects strength, print time, material use, and the likelihood of warping or failure. For FDM printing, walls are usually built from perimeters (shells) that follow the outline of the part. If a wall is thinner than the combined width of the chosen number of perimeters, slicers may drop walls or create weak single-line features. Designing walls that align with nozzle and perimeter strategies can improve strength and surface quality. For example, with a 0.4 mm nozzle, two perimeters might produce a wall close to 0.8–0.9 mm depending on extrusion width. If you design a wall at 1.1 mm, the slicer may alternate between two and three lines in different regions, causing inconsistent strength. A more robust approach is to choose thicknesses that map cleanly to perimeter counts: 1.2 mm for three lines at 0.4 mm, or 1.6 mm for four lines, adjusted for your slicer’s extrusion width. Resin printing has different constraints: thin walls can print beautifully but may warp during curing or crack under stress, so designs often benefit from ribs and fillets.

Hollowing and internal structures also demand care. Hollow parts can save material and reduce print time, but they must include drainage holes to remove resin or powder and prevent pressure differentials. Without proper venting, hollow resin prints can trap uncured resin, leading to swelling, cracking, or hazardous leaks. For FDM, hollowing is typically handled by infill, but CAD decisions still matter: adding internal ribs can strengthen large flat panels, reducing flex and resonance. In 3d cad for 3d printing, shells should be thick enough to survive post-processing like sanding, tapping threads, or installing heat-set inserts. Large flat surfaces are prone to warping; adding gentle curves, ribs, or breaking a surface into smaller panels can help. Also consider anisotropy: printed parts are weaker between layers than within a layer, so wall orientation and rib direction influence how loads travel. By designing wall thickness and internal reinforcement intentionally, you get prints that feel engineered rather than fragile, even when using consumer-grade printers.

Overhangs, bridges, and support strategy: designing to reduce cleanup

Overhang management is one of the most practical areas where 3d cad for 3d printing can save time and improve quality. Every support structure you add becomes a scar that must be removed, sanded, or concealed, and supports can damage fine details. Designing with printing angles in mind reduces the need for supports and produces cleaner surfaces. With FDM, overhangs beyond roughly 45 degrees from vertical often need support, though tuned printers can sometimes handle more. Bridges—horizontal spans between two points—can print without support if the distance is modest and cooling is adequate, but long bridges sag. In CAD, you can replace problematic overhangs with chamfers, arches, or teardrop shapes. For example, instead of a flat horizontal ceiling inside a hole, use a teardrop profile so the printer is always building on previous layers. For enclosures, replacing an internal right angle with a 45-degree chamfer can eliminate internal supports entirely, making the part easier to print and cleaner inside.

Resin printing has a different support reality: almost everything is technically printable, but supports are essential for anchoring islands and managing peel forces. Support placement influences surface finish because contact points leave marks. In 3d cad for 3d printing, you can design “support-friendly” geometry by adding sacrificial tabs, thickening delicate tips, or orienting the model so supports attach to hidden areas. Adding fillets and avoiding razor-sharp edges can also reduce cupping and suction issues. Another strategy is splitting a model into multiple parts so each piece can be oriented for minimal supports and best surface quality. This also enables multi-material assembly, embedded hardware, and easier painting. When you design with supports in mind, you’re not only improving print success; you’re optimizing the labor after printing. Less support cleanup means faster turnaround, better appearance, and less risk of breaking delicate features during removal—benefits that compound across repeated production runs.

Assemblies, joints, and fasteners: snap-fits, screws, and alignment features

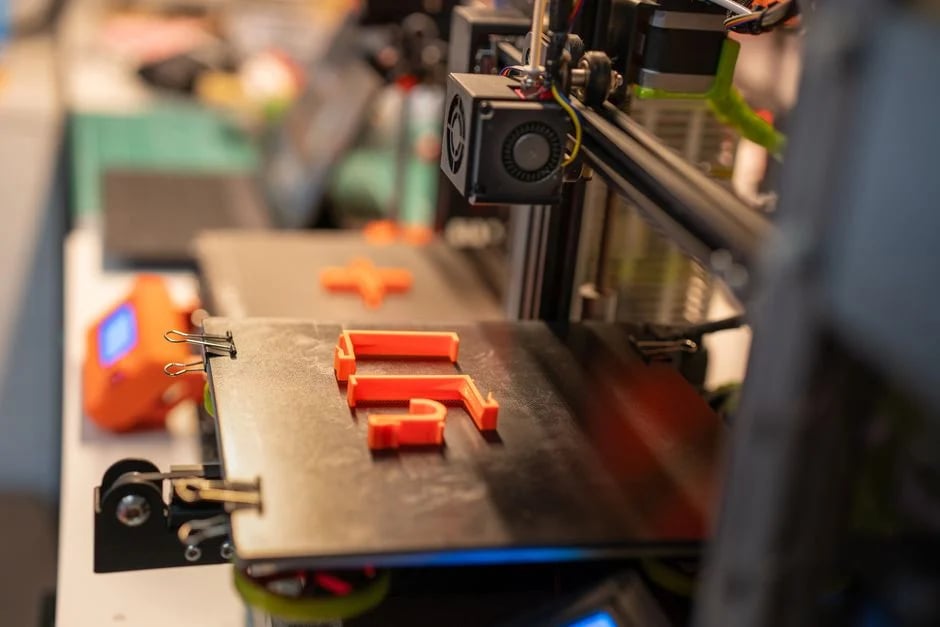

Many practical projects require multiple parts, which makes assembly design a key skill in 3d cad for 3d printing. Instead of printing a single complex object that needs heavy supports, it’s often better to break it into components that print cleanly and then join them. Common joining methods include screws, heat-set inserts, snap-fits, dovetails, magnets, pins, and adhesives. Each method has CAD implications. Screw joints require adequate boss thickness, pilot holes sized for the screw type, and clearance for drivers. Heat-set inserts need pockets with appropriate diameter and depth, plus surrounding material thick enough to resist cracking. Snap-fits are especially sensitive: they rely on controlled flex, so you need to choose materials that can bend without snapping and design beams with proper length, thickness, and fillet radii at the base to reduce stress concentration. Alignment features like dowel pins, tongues and grooves, and locating tabs help parts assemble squarely and reduce reliance on tight tolerances across large surfaces.

Another assembly consideration is tolerance stack-up: small errors in each part can accumulate and create misalignment. In 3d cad for 3d printing, designing generous lead-ins, tapered guides, and floating clearances where appropriate can make assemblies forgiving. For example, a peg-and-hole alignment can be improved by adding a chamfer on the peg and a countersink on the hole. If you’re using magnets, you can design pockets with a slight interference fit and a flat bottom for consistent seating depth. For adhesive joints, include bonding surfaces with enough area and consider adding shallow keys or texture to increase mechanical grip. If the assembly must be serviceable, avoid permanent adhesives and prefer screws or snap-fits designed for repeated use. Also think about print orientation for each component: a snap arm printed with layers running along its length will be stronger than one printed with layers across the bend. By treating assemblies as a system rather than isolated parts, 3d cad for 3d printing becomes a method for producing real products, not just single prints.

Material-aware CAD: designing differently for PLA, PETG, ABS, resin, and nylon

Material properties should influence CAD decisions because 3d cad for 3d printing is only as good as the physical behavior of the printed polymer. PLA is stiff and easy to print, but it can deform under heat and may crack under repeated impacts. PETG is tougher and more temperature resistant than PLA, but it can be flexible and sometimes stringy, so thin features may wobble during printing. ABS and ASA can handle higher temperatures and are more impact resistant, but they warp more and require enclosure control, making large flat parts risky without ribs or curvature. Nylon and other engineering filaments offer excellent toughness and fatigue resistance, which is great for snap-fits, but they absorb moisture and can be tricky to print. Resins vary widely: standard resin can be brittle, tough resin can flex, and engineering resins can mimic ABS-like behavior, but resin prints can still be sensitive to UV aging and post-cure conditions. If you ignore material behavior, you may end up with parts that look correct but fail in use.

Material-aware design in 3d cad for 3d printing includes selecting wall thickness, fillet sizes, and joint designs that match the expected loads. For brittle materials, avoid sharp internal corners and thin cantilevers; use larger fillets and distribute stress across broader sections. For flexible materials, add ribs or gussets to prevent unwanted bending. For parts exposed to heat, avoid long thin spans that can creep over time. Also consider friction and wear: sliding parts may benefit from larger clearances, smoother surfaces, and replaceable wear components. Chemical exposure matters too; some resins and filaments degrade in certain environments. If you’re building a functional prototype that will later be injection molded, designing with additive constraints while preserving the core geometry can still be valuable, but don’t assume printed behavior equals molded behavior. The best approach is to define requirements first—temperature, load, impact, assembly cycles—then let those requirements guide your CAD choices so the printed object performs reliably in the real world.

Text, logos, and fine details: embossing, engraving, and readability

Adding text and branding is common in 3d cad for 3d printing, but fine details can fail if they’re not designed for the printer’s resolution. Embossed text (raised) tends to print more reliably on FDM than engraved text (recessed) when the surface is top-facing, because recessed letters can fill in with sagging or over-extrusion. On vertical faces, both can work, but letter stroke width and depth matter. A practical rule is to avoid extremely thin strokes; instead, use bold fonts and simplify shapes. For small labels, consider using uppercase sans-serif fonts with generous spacing. Depth and height should be sized for the process: FDM needs larger features to overcome nozzle diameter and layer height limitations, while resin can capture much finer detail but may still lose crispness after priming and painting. If the part will be sanded, painted, or vapor smoothed, you must design details deeper and larger to survive finishing.

Placement and orientation also affect readability. Text on curved surfaces can distort when sliced, and text placed on sloped surfaces may become stepped due to layer lines. In 3d cad for 3d printing, you can improve results by placing text on flat pads, adding a slight chamfer around the pad edge, and ensuring the text faces upward or outward in a way that minimizes supports. If supports are unavoidable, keep them away from fine lettering. For logos, simplify intricate vector art into thicker lines and fewer tiny islands that could detach or blur. Another tactic is to design a recessed pocket for a separate printed nameplate, which can be printed face-up for maximum clarity and then snapped or glued into the main part. This modular approach also makes it easy to change versions, serial numbers, or labels without reprinting the entire object, which is especially useful for small-batch production and iterative prototyping.

Export settings and file formats: STL, 3MF, STEP, and tolerance control

Exporting is where many 3d cad for 3d printing projects succeed or fail, because the slicer only sees what the file format describes. STL is the most common format and represents surfaces as triangles, but it carries no units, limited metadata, and can produce either overly coarse or unnecessarily dense meshes depending on tolerance settings. If the STL is too coarse, circles become polygons and curved surfaces show faceting. If it’s too fine, file sizes become huge and can slow down slicing without improving print quality beyond the printer’s resolution. 3MF is increasingly popular because it can store units, colors, multiple bodies, and settings more robustly, reducing ambiguity. STEP is not typically sliced directly for hobby printing, but it’s excellent for exchanging precise CAD geometry between programs and preserving parametric intent. A strong workflow is to keep a master CAD file in a parametric format, share STEP when collaborating, and export STL or 3MF for slicing.

Tolerance control is the practical heart of export. Most CAD tools let you define chord height (how far triangles deviate from the true curve) and angular tolerance (how finely curved areas are subdivided). For 3d cad for 3d printing, the goal is to make the mesh error much smaller than the printer’s effective resolution. If you’re printing with a 0.4 mm nozzle and 0.2 mm layers, a chord height of 0.01–0.05 mm is often sufficient for most parts, while resin printing may justify tighter tolerances depending on the detail level. Also watch for unit mismatches: since STL doesn’t store units, exporting in millimeters and importing as inches (or vice versa) can scale parts incorrectly by 25.4×. Before printing, verify critical dimensions in the slicer. If you’re exporting assemblies, ensure bodies are either merged intentionally or kept separate intentionally; accidental overlaps can create internal walls or weak bonds. By treating export as a controlled manufacturing handoff rather than a casual save step, you preserve the quality of your CAD work all the way to the printer.

Repair, validation, and slicer feedback loops: turning print results into better CAD

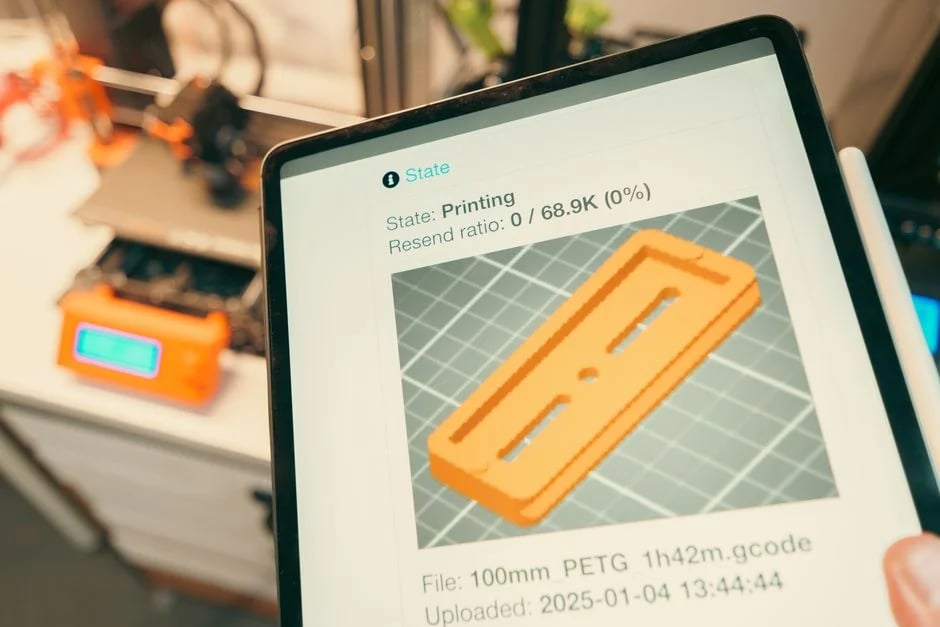

No matter how careful you are, the fastest way to improve 3d cad for 3d printing is to use slicer feedback and real print results as part of the design loop. Slicers reveal issues that CAD views can hide: thin walls that disappear, internal voids, unexpected support islands, and weak bridging zones. Before printing, use preview modes to examine perimeters, top and bottom layers, and support placement. If a wall is being printed as a single line where you expected two, adjust the CAD thickness. If a hole is being approximated poorly, consider increasing its diameter slightly, changing it to a teardrop, or reorienting the part. If supports are touching critical cosmetic surfaces, redesign the geometry or split the part. This feedback loop is where “printability” becomes a measurable attribute rather than a guess. It also helps you develop house rules for minimum feature sizes that match your specific printers.

Validation and repair tools are another key part of 3d cad for 3d printing, especially when working with imported meshes. Mesh repair utilities can close holes, remove non-manifold edges, and fix normals, but repairs can also alter dimensions if used carelessly. Whenever possible, fix problems at the source in CAD rather than relying on automatic repair, because source fixes preserve intent and accuracy. For functional parts, verify dimensions with calipers after printing and record deviations. You may find that holes consistently print undersized by a certain amount, or that outer dimensions are slightly oversized due to extrusion width. Instead of manually adjusting every model, you can incorporate standard offsets into your CAD templates or slicer compensation settings. Over time, you build a reliable process: CAD rules produce predictable slices, and predictable slices produce predictable parts. That consistency is what turns 3D printing from experimentation into dependable manufacturing for prototypes, tools, and end-use objects.

Best practices for scalable workflows: templates, naming, versioning, and collaboration

As projects grow beyond single prints, organization becomes an essential part of 3d cad for 3d printing. A scalable workflow uses templates with predefined units, default fillet radii, standard clearances, and common hardware sizes. If you frequently design for M3 screws, heat-set inserts, or specific bearings, building a reusable library of parametric features saves time and reduces mistakes. Naming conventions matter too: consistent file names that include version numbers, material assumptions, and printer/process notes make it easier to reproduce results months later. For example, a project might have separate exports for “prototype fit,” “strength revision,” and “production,” each tied to a specific CAD revision. This discipline prevents the common problem of printing an outdated STL that no longer matches the latest CAD changes. When you treat CAD files as the source of truth and exports as generated artifacts, you reduce confusion and improve repeatability.

Collaboration adds another layer. When multiple people touch the same 3d cad for 3d printing project, you need clear handoffs: share STEP for geometry exchange, share 3MF when you want to preserve part orientation and multiple bodies, and document critical dimensions and tolerances in notes or drawings. If a collaborator uses a different printer, process, or material, align on the assumptions. A design that prints perfectly on a tuned direct-drive FDM printer may fail on a Bowden setup without adjustments. Similarly, resin printers vary in exposure behavior and support strategies. Keeping a simple change log—what changed and why—helps teams avoid repeating old mistakes. Even solo makers benefit from this approach because it creates a memory of decisions. The result is a workflow where 3d cad for 3d printing becomes a reliable production system: quick iterations, fewer failed prints, and designs that can be revisited and improved without starting over.

Conclusion: turning CAD skill into consistent print success

Strong results come from treating 3d cad for 3d printing as a manufacturing discipline: clean solids, realistic tolerances, material-aware geometry, and export settings that match the printer’s capabilities. When models are designed to be watertight and support-friendly, they slice predictably and print with fewer surprises. When assemblies include alignment, lead-ins, and appropriate fastening strategies, parts fit together without forcing or rework. When wall thicknesses, fillets, and ribs are chosen intentionally, prints feel durable rather than delicate. The cumulative effect is significant: fewer failures, less post-processing, and faster iteration from idea to functional object.

As your workflow matures, the most valuable habit is closing the loop between CAD, slicing, and measurement, then updating your design standards accordingly. Print small tests, record what works, and build reusable features so each new project starts from proven geometry rather than guesswork. With that mindset, 3d cad for 3d printing becomes a repeatable craft: designs are easier to modify, easier to manufacture, and more likely to perform as intended the first time they come off the build plate.

Watch the demonstration video

In this video, you’ll learn the essentials of 3D CAD for 3D printing—from choosing the right software to building clean, printable models. It covers core modeling tools, design tips for strength and fit, and how to export files correctly for slicing, helping you turn ideas into reliable prints.
