Understanding FDM Printing and Why It Matters

FDM printing has become one of the most recognizable forms of desktop additive manufacturing because it turns digital designs into physical objects with relatively simple hardware and an accessible workflow. At its core, fdm printing relies on melting a thermoplastic filament and depositing it through a nozzle in thin layers that bond to each other as they cool. This layered approach makes complex geometries possible without the tooling costs associated with injection molding or machining, and it allows iterative prototyping on a timescale measured in hours instead of weeks. While the technology is often associated with hobbyist machines, the same fundamental process underpins many professional systems used for fixtures, jigs, functional prototypes, and even end-use parts when the design is optimized for the process. The appeal comes from a combination of affordability, material variety, and the ability to produce one-off parts economically. Understanding how fdm printing works at a practical level helps clarify why certain defects occur, why some designs succeed while others fail, and how to tune settings to achieve predictable results.

Although the basic concept sounds straightforward, the quality and reliability of fdm printing depend on a chain of interrelated factors: filament consistency, extrusion temperature, cooling strategy, bed adhesion, motion accuracy, and slicing parameters that translate geometry into toolpaths. Each layer becomes both a foundation and a constraint; if the first layer is poorly bonded, the entire part can warp or detach, and if cooling is mismanaged, overhangs can sag or bridges can droop. The process also introduces anisotropy, meaning the part can be stronger along the filament paths than between layers, which affects how you orient parts for strength. Yet these constraints do not diminish the value of fdm printing; they simply shape best practices. When designers learn to think in layers, align stress with bead direction, and choose filaments that match the environment, the method can deliver impressive functional performance. The most successful users treat the printer as a manufacturing system, not a magic box: they control variables, validate outcomes, and iterate with intention.

How the FDM Printing Process Works: From Filament to Finished Part

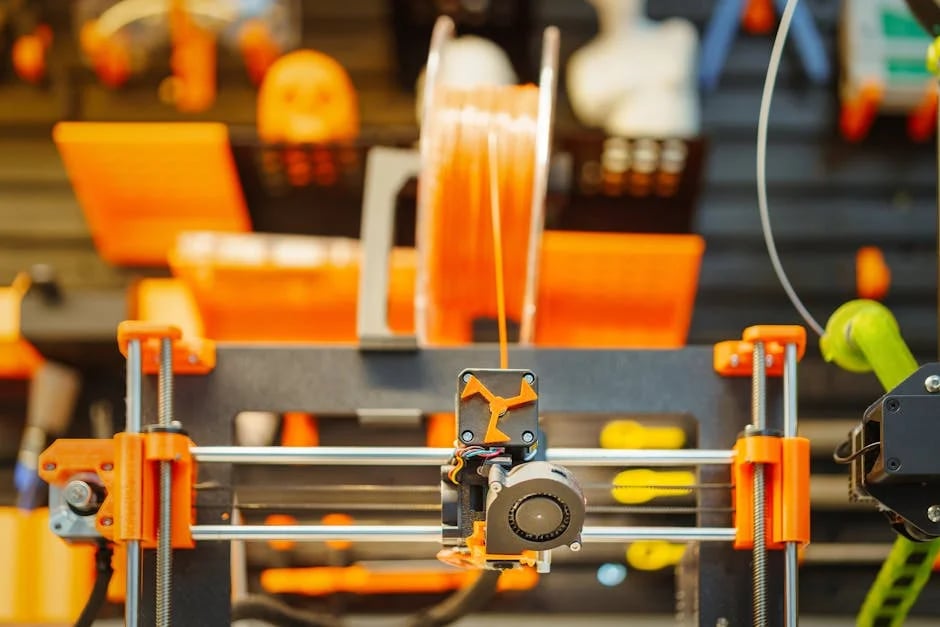

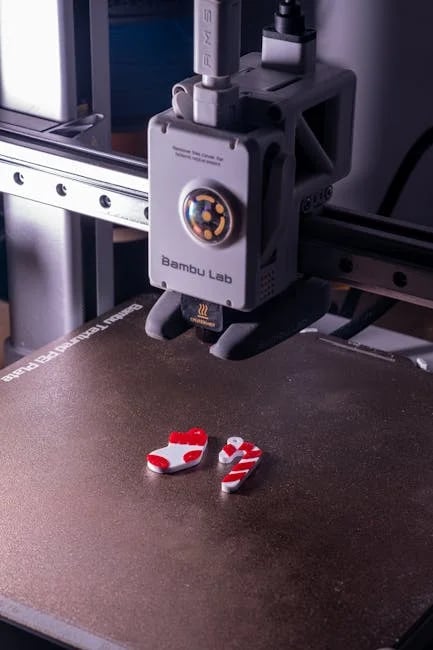

The mechanical sequence behind fdm printing begins with filament feeding from a spool into an extruder, where drive gears push the material into a heated zone. Inside the hotend, the filament transitions from solid to a viscous melt that can be forced through a nozzle with a defined diameter, commonly 0.4 mm but often larger for speed or smaller for fine detail. As the printer’s motion system moves the nozzle in X and Y, it lays down a bead of molten plastic on a build plate or on top of a previously deposited layer. The Z axis then increments by the chosen layer height, and the next layer is printed. This continues until the object is complete. The “bonding” between layers is primarily thermal: the new bead reheats the surface of the previous layer enough for polymer chains to interdiffuse, creating a weld. That weld strength is sensitive to temperature, time, and cooling, which is why fdm printing settings can significantly change mechanical performance even when the same filament is used.

Slicing software is the translator that turns a 3D model into the commands a printer can execute, typically G-code. It decides wall counts, infill patterns, top and bottom layers, support structures, travel moves, and acceleration behavior. These choices affect strength, surface finish, print time, and the risk of defects such as stringing, blobs, under-extrusion, and warping. For example, higher print speeds can reduce layer adhesion if the plastic is not hot enough or if the nozzle does not spend enough time depositing material for proper thermal bonding. Conversely, overly high temperatures can lead to oozing, sagging on overhangs, and degraded polymer properties. FDM printing is often described as forgiving, but consistent results come from understanding each step: filament must be dry, the nozzle must be clean, the bed must be level, and the slicer must be configured to match the printer’s capabilities. When these fundamentals are dialed in, the process becomes repeatable, and the printer produces parts that can be dimensionally accurate, aesthetically pleasing, and mechanically useful.

Key Printer Components That Influence FDM Printing Quality

Hardware design plays a major role in fdm printing outcomes, even before any slicer setting is changed. The extruder type—direct drive versus Bowden—affects how precisely filament can be controlled, particularly with flexible materials. Direct drive systems place the drive gears close to the hotend, improving retraction responsiveness and reducing the springiness that can cause stringing. Bowden setups move the extruder motor off the toolhead, reducing moving mass and sometimes enabling higher accelerations, but they can struggle with very soft filaments and can require more aggressive retraction tuning. The hotend’s thermal design also matters: a well-managed heat break prevents heat creep that can soften filament too early, while a stable heater block maintains consistent melt temperature under varying flow rates. Nozzle material and geometry influence durability and flow; brass nozzles are common for ease of use, while hardened steel or ruby-tipped nozzles are preferred for abrasive composites like carbon-fiber-filled filaments.

The motion system and frame rigidity determine how accurately the printer can place plastic. Belt tension, pulley alignment, stepper motor current, and linear rail or wheel quality all influence ringing, ghosting, and dimensional error. Even subtle vibrations can show up as surface artifacts, especially on tall parts where the structure can oscillate. Bed design is equally crucial. A flat, stable build surface with consistent heating reduces warping and improves first-layer reliability. Automatic bed leveling sensors can compensate for minor surface irregularities, but they cannot fix a warped plate or a loose mechanical system. Cooling fans and ducts shape how quickly the polymer solidifies; too little cooling can ruin bridges and overhangs, while too much cooling can cause layer separation in materials that prefer higher chamber temperatures. In fdm printing, the best results come from aligning hardware capability with intended materials and applications, then tuning the system as a whole. A machine optimized for PLA speed printing is not automatically ideal for ABS or nylon, and recognizing those trade-offs helps set realistic expectations and guides smart upgrades.

Materials for FDM Printing: Choosing the Right Filament for the Job

Material selection is one of the most important decisions in fdm printing because the polymer determines not only appearance but also strength, temperature resistance, chemical compatibility, and long-term stability. PLA is popular for its ease of printing, low warping, and crisp details, making it excellent for visual prototypes, display pieces, and dimensionally stable parts used at room temperature. PETG offers a balance of toughness and ease, with better heat and impact resistance than PLA, though it can be stringier and may require careful tuning to avoid blobs. ABS and ASA are favored when higher temperature resistance is needed, with ASA offering improved UV stability for outdoor parts. These materials often benefit from an enclosure to reduce warping and improve layer adhesion by keeping the part warm during printing. TPU and other flexible filaments enable gaskets, bumpers, and vibration-damping parts, but they demand controlled extrusion and slower speeds to prevent buckling in the feed path.

Engineering materials expand what fdm printing can do, but they also raise the bar for equipment and process control. Nylon provides excellent toughness and fatigue resistance, making it suitable for functional hinges, clips, and wear parts, yet it is hygroscopic and can absorb moisture quickly, leading to bubbling and weak prints if not dried. Polycarbonate offers high strength and heat resistance but requires high nozzle temperatures and good chamber management to prevent cracking. Composite filaments filled with carbon fiber, glass fiber, wood, or metal powders can improve stiffness or aesthetics, but they may reduce layer adhesion or impact strength depending on formulation, and they can rapidly wear standard nozzles. When selecting filament, it helps to define the operating environment: expected loads, exposure to heat, sunlight, oils, or solvents, and whether surface finish matters more than mechanical properties. FDM printing becomes significantly more reliable when filament is stored dry, printed within its recommended temperature range, and matched to a printer that can maintain stable thermal conditions. A thoughtful material choice can eliminate many problems that users mistakenly try to solve with slicer tweaks alone.

Design Principles for Successful FDM Printing

Designing for fdm printing means embracing the layered nature of the process and planning geometry that prints cleanly without excessive supports or post-processing. Overhangs are a central constraint: most printers can handle moderate angles, but steep overhangs often require support structures that add time, material, and surface scarring. Chamfers and fillets can replace sharp 90-degree overhangs, and splitting a model into multiple parts can allow each piece to be oriented for minimal support and maximum strength. Wall thickness should align with nozzle width and extrusion settings; designing walls that match common line widths (for example, multiples of 0.4 mm) helps the slicer generate clean toolpaths without gaps or odd infill artifacts. Holes and pins need special attention because circular features can print slightly undersized due to extrusion width and cooling behavior; designing with tolerances and using test coupons can prevent frustrating fit issues.

Strength in fdm printing is strongly influenced by orientation because layer-to-layer bonding is typically weaker than strength along the extruded lines. Parts that will experience bending or pulling loads should be oriented so that stress runs along the filament path rather than across layers, when possible. Adding ribs, gussets, and gradual transitions can reduce stress concentrations, while avoiding thin, tall features can prevent wobble and layer shifts during printing. Clearances for assemblies should account for printer variability, material shrinkage, and intended post-processing. If a part will be tapped, designers may prefer heat-set inserts or captive nuts rather than cutting threads directly into printed plastic, especially for repeated use. When designs are created with the process in mind, fdm printing can produce parts that feel intentional and professional rather than improvised. That design discipline also reduces dependence on excessive supports and sanding, leading to faster production cycles and more consistent outcomes across different printers and materials.

Slicer Settings That Make or Break FDM Printing Results

Slicer configuration is where fdm printing transitions from a generic capability to a controlled manufacturing process. Layer height is a primary lever: thinner layers can improve surface detail and reduce visible stepping, but they increase print time and can amplify issues like heat buildup on small features. Thicker layers print faster and can improve interlayer bonding in some cases by depositing more heat, but they reduce fine detail and can make curves look more faceted. Perimeter count and top/bottom layers influence strength and surface integrity; many functional parts benefit from thicker walls rather than very dense infill, because walls carry load more effectively. Infill type and percentage affect weight, stiffness, and print time, but more infill is not always stronger if layer adhesion is the limiting factor. Patterns such as gyroid can offer isotropic behavior, while grid and cubic patterns can be faster. The best approach is to tune these choices to the part’s load paths and failure modes rather than defaulting to high infill for peace of mind.

Temperature, speed, retraction, and cooling are interdependent in fdm printing. Increasing speed without raising temperature can cause under-extrusion and weak layers; raising temperature too much can cause stringing, drooping, and poor bridging. Retraction distance and speed help control oozing during travel moves, but overly aggressive retraction can grind filament or cause heat creep jams, especially with all-metal hotends and certain materials. Cooling fans improve overhangs and small-feature crispness, particularly with PLA, yet for materials like ABS, too much cooling can lead to cracking and delamination. Advanced slicer features can improve reliability: pressure advance or linear advance reduces corner blobs by compensating for extrusion lag, while adaptive layer heights can preserve detail where needed without slowing the entire print. Seam placement choices can hide the start/stop line on less visible edges. Ultimately, consistent fdm printing comes from building a profile per material and nozzle size, then validating it with calibration prints that measure dimensional accuracy, bridging, overhang behavior, and retraction performance. Once a stable baseline is established, adjustments should be made methodically, changing one variable at a time to avoid confusion.

Bed Adhesion, First Layer Control, and Warping Prevention

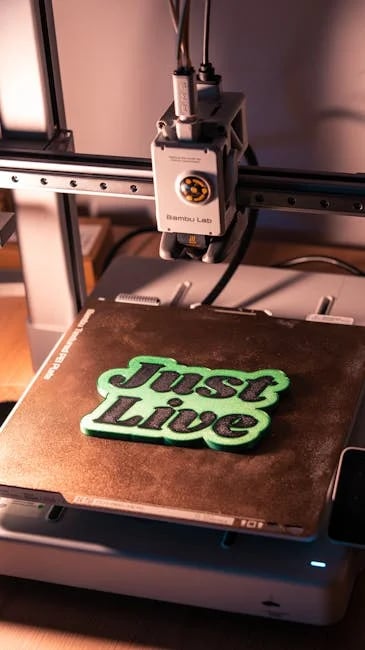

The first layer is the foundation of fdm printing, and most print failures can be traced back to problems that start at the build plate. Proper bed leveling or mesh compensation ensures the nozzle-to-bed distance is consistent across the surface, allowing the first layer to be slightly squished for strong contact without being so compressed that extrusion becomes inconsistent. Bed temperature must match the filament’s needs: PLA often adheres well at moderate bed temperatures, while PETG may need a bit more heat but can bond too aggressively to certain surfaces, and ABS typically requires higher bed heat to reduce thermal gradients that cause warping. Cleanliness is often underestimated. Oils from fingerprints and residue from adhesives can reduce adhesion unpredictably, so regular cleaning with appropriate solvents for the build surface is a practical habit. Choosing a build surface—textured PEI, smooth PEI, glass, or specialty plates—affects both adhesion and the finish on the bottom of the part.

Warping occurs when the part cools unevenly and shrinks, pulling edges upward. FDM printing is particularly susceptible with materials that have higher shrink rates, such as ABS, especially on large, flat parts. Strategies to reduce warping include using an enclosure to stabilize ambient temperature, reducing cooling fan intensity, increasing bed temperature within safe limits, and using brim or raft structures to increase the contact area. Design changes also help: rounding corners, adding mouse ears, or breaking up large flat surfaces with ribs can reduce stress. Adhesion aids like glue stick, specialized adhesives, or slurry methods can be used, but they should be applied thoughtfully to avoid mess and inconsistent thickness. Another overlooked factor is the printer’s environment: drafts from air conditioning, open windows, or fans can create localized cooling that leads to curling and layer separation. When first-layer calibration is treated as a routine step rather than an occasional chore, fdm printing becomes dramatically more dependable, and the printer can run longer jobs with less supervision. A reliable first layer also improves dimensional accuracy because the part’s base is not distorted by uneven squish or partial detachment.

Supports, Bridging, and Overhang Control in FDM Printing

Support structures are often necessary in fdm printing, but they represent a trade-off between geometric freedom and surface quality. Supports increase material use and print time, and removal can leave marks or require sanding. Choosing when to use supports and how to configure them is therefore a key skill. Support density, interface layers, and Z-gap settings determine how easily supports detach and how clean the supported surface looks. Tree-style supports can reduce contact points and improve removal in many cases, while traditional grid supports can be more stable for large overhangs. Orientation is the first line of defense: rotating a part to place critical surfaces upward can reduce support scarring, and splitting a model into pieces can eliminate the need for supports entirely. Designers can also incorporate self-supporting angles, arches, and chamfers to replace flat overhangs that would otherwise require extensive scaffolding.

Bridging is a special case where the printer spans a gap without support by stretching filament from one anchor point to another. Successful bridging in fdm printing depends on cooling, extrusion flow, and speed. Too much flow can cause sagging; too little can lead to thin, weak strands that break. Cooling helps the filament solidify quickly, but excessive fan can cause poor layer adhesion in surrounding areas for some materials. Slicer bridging settings often allow separate speed and flow parameters specifically for bridges, and tuning them can dramatically improve results. Overhang performance is similarly sensitive: small adjustments in layer height, nozzle temperature, and fan speed can turn droopy edges into crisp contours. For functional parts, it is worth considering whether a supported surface is critical to fit or sealing; if it is, redesigning to avoid that supported region can save time and improve performance. Mastering supports and bridging makes fdm printing more versatile, enabling complex internal channels, angled features, and lightweight structures while maintaining acceptable surface finish and dimensional stability.

Accuracy, Tolerances, and Surface Finish Expectations

Dimensional accuracy in fdm printing is achievable, but it requires realistic tolerance planning and calibration. Factors such as filament diameter variation, extrusion multiplier, belt tension, and thermal contraction all influence final dimensions. Calibrating steps-per-mm for motion axes ensures commanded distances match actual movement, while extrusion calibration helps ensure the printer deposits the intended volume of plastic. Even with careful calibration, holes often print smaller and external dimensions can vary slightly due to how molten plastic rounds corners and how slicers approximate curves. For assemblies, it is practical to design clearance into mating features and validate with small test prints. A common workflow is to print a tolerance gauge that includes a range of gaps and pin sizes, then select the clearance that consistently works for a given material and printer profile. This approach acknowledges that fdm printing is a process with variability, and it replaces guesswork with measurement.

Surface finish is shaped by layer height, nozzle diameter, print speed, cooling, and the geometry of the part. Vertical surfaces can look smooth with fine layers, while shallow slopes reveal stepping unless adaptive layers are used. Seam placement can create a visible line, and travel moves can leave scars if retraction and wiping are not tuned. Post-processing options include sanding, priming, painting, vapor smoothing for certain materials, and heat treatments, but each has trade-offs in labor and dimensional change. For many functional parts, a slightly textured surface is acceptable or even beneficial for grip, while aesthetic models may require more finishing. It is also important to understand that fdm printing produces parts with directional texture because the toolpath is visible; this is not necessarily a flaw, but a signature of the process. Setting expectations upfront—what “good” looks like for a given use case—helps choose the right balance of speed, detail, and finishing effort. When accuracy and finish are critical, printing smaller features slower, using a smaller nozzle, and maintaining stable temperatures can make a noticeable difference.

Common FDM Printing Problems and Practical Troubleshooting

Even with good equipment, fdm printing can encounter recurring issues that are best solved by identifying root causes rather than chasing random settings. Stringing is a frequent complaint, typically caused by filament oozing during travel moves. It can be mitigated by adjusting retraction, lowering nozzle temperature within the filament’s workable range, improving cooling for materials that tolerate it, and ensuring filament is dry. Under-extrusion shows up as gaps, weak layers, or a rough surface and can result from partial nozzle clogs, insufficient temperature, too-high speed, incorrect extrusion multiplier, or a worn extruder gear. Over-extrusion can cause blobs, poor dimensional accuracy, and messy seams; it often comes from incorrect flow settings or filament diameter assumptions. Layer shifts usually indicate mechanical issues like loose belts, pulley slippage, excessive acceleration, or collisions with warped parts or supports. Addressing the mechanical cause is more effective than compensating in software.

Clogging and inconsistent extrusion can also come from moisture, especially with hygroscopic filaments like nylon and some PETG formulations. Moist filament can pop and hiss as it prints, leaving pitted surfaces and weak walls. Drying filament and storing it in sealed containers with desiccant makes fdm printing more stable and reduces unpredictable failures. Warping and cracking, common with ABS and similar materials, often indicate insufficient enclosure temperature, excessive cooling, or poor bed adhesion. Z-banding can arise from lead screw issues, misalignment, or inconsistent friction in the Z axis. Elephant’s foot—where the bottom layers bulge outward—can be reduced by lowering bed temperature slightly, improving cooling after the first layers, or using slicer compensation features. A disciplined troubleshooting approach starts with observation: note when the defect appears, whether it correlates with specific heights, directions, or features, and whether it changes with a different filament spool. Then adjust one variable at a time. This method turns fdm printing from a trial-and-error experience into a process that can be controlled and improved systematically.

Applications: Where FDM Printing Excels in Real-World Use

FDM printing is widely used for prototyping because it supports rapid iteration and low-cost experimentation. Product teams can validate ergonomics, test assembly fit, and refine geometry without waiting for outsourced tooling. Functional prototypes can be printed in tougher materials like PETG, nylon, or polycarbonate blends to simulate real-world handling. In engineering environments, fdm printing is commonly used for jigs, fixtures, gauges, and assembly aids that improve repeatability on the shop floor. These tools often do not need a perfect cosmetic finish; they need to be accurate enough, durable enough, and easy to replace if the process changes. Because fdm printing can produce custom shapes quickly, it is also useful for cable guides, sensor mounts, protective covers, and brackets tailored to specific machines. When paired with threaded inserts and thoughtful design, printed tooling can withstand significant daily use.

Beyond industry, fdm printing supports education, research, and small-batch production. In classrooms, it helps students move from CAD to physical objects, reinforcing design thinking and manufacturing constraints. In labs, it enables custom holders, test rigs, and enclosures for electronics. Makers and small businesses use fdm printing to produce personalized products, replacement parts, and niche accessories that would be uneconomical to manufacture with traditional methods. Medical and assistive applications include custom grips, splints, and adaptive tools, often created with user feedback in short cycles. While not every application is suitable—high-temperature engine bay parts or long-term UV exposure may demand specialized materials or different manufacturing methods—fdm printing occupies a valuable middle ground between concept models and mass production. Its strength lies in flexibility: the ability to change a design instantly, produce one unit or ten, and iterate until the part meets real needs.

Workflow, Maintenance, and Long-Term Reliability in FDM Printing

Reliable fdm printing is less about constant tinkering and more about establishing a stable workflow that keeps variables under control. A consistent routine might include checking nozzle condition, cleaning the build plate, confirming bed leveling or mesh status, and verifying filament dryness before long prints. Nozzles wear over time, especially with filled composites, which can gradually reduce print quality and dimensional accuracy. Replacing nozzles on a schedule appropriate to usage is often cheaper than wasting time troubleshooting mysterious defects. The extruder drive gears can accumulate filament dust and should be cleaned periodically to maintain grip. Fans and ducts should be inspected for dust buildup that reduces cooling performance. Belts can stretch slightly and may need re-tensioning; loose belts often show up as ringing or dimensional drift. Keeping firmware and slicer profiles organized also matters, because random changes make it difficult to reproduce results.

Filament handling is a major determinant of long-term fdm printing success. Many materials absorb moisture from the air, and even PLA can degrade over time in humid environments. Storing spools in sealed containers and using dry boxes during printing can prevent surface defects and improve strength. When quality matters, labeling spools with purchase date, material type, and drying history helps maintain consistency. Another part of reliability is process documentation: saving slicer profiles per printer, per nozzle size, and per material reduces setup time and ensures that a proven configuration is not lost. For production-like use, it is helpful to standardize on a few filaments and validate them with test prints whenever a new batch arrives. Long-term stability also benefits from environmental control—minimizing drafts, maintaining a stable room temperature, and ensuring the printer sits on a sturdy surface. When treated like a piece of manufacturing equipment, fdm printing becomes predictable enough to support deadlines, repeated builds, and multi-part assemblies without constant rework.

Conclusion: Getting Consistent Value from FDM Printing

FDM printing delivers the most value when the process is approached with practical expectations, disciplined calibration, and a design mindset that respects layer-based manufacturing. The combination of accessible machines, diverse filament options, and powerful slicing tools makes it possible to produce everything from quick concept models to durable fixtures and functional components. Consistency comes from controlling fundamentals—dry filament, stable temperatures, solid first-layer adhesion, and motion systems in good mechanical health—then refining slicer profiles based on measurable outcomes. When materials are chosen for real operating conditions and parts are oriented for strength, the results can be surprisingly robust. With that foundation in place, fdm printing becomes a repeatable method for turning ideas into physical objects efficiently, whether the goal is prototyping, tooling, education, or small-batch production.
